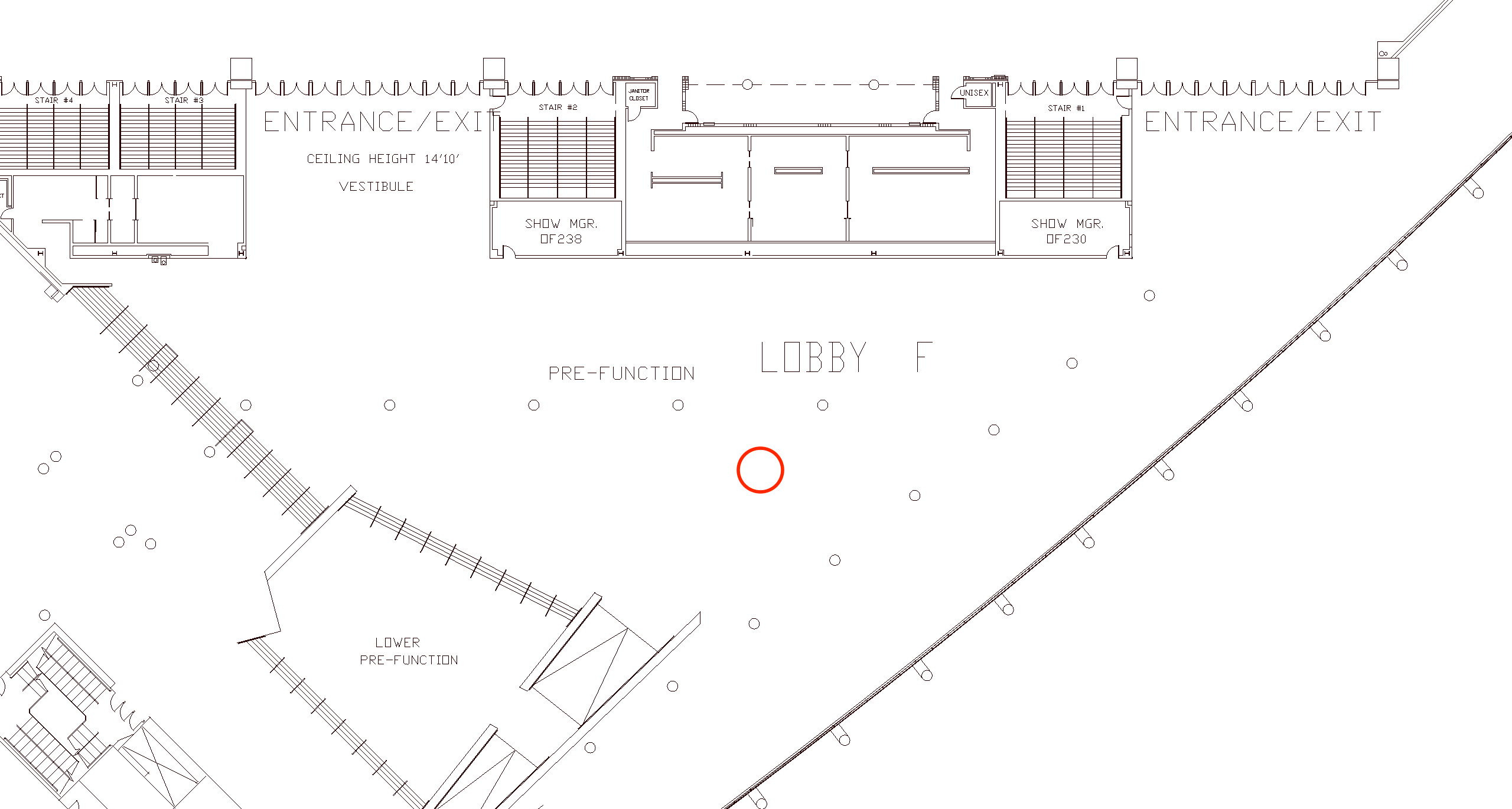

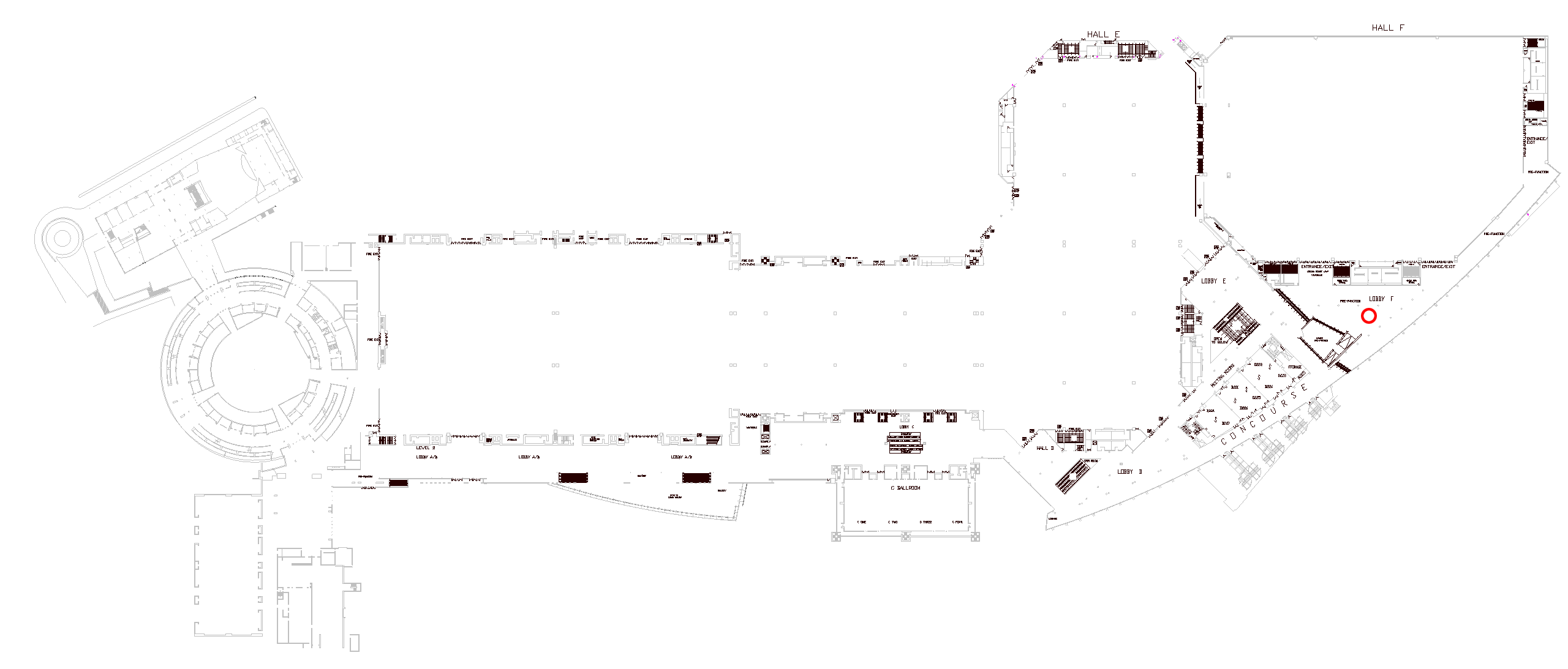

Hall F Lobby

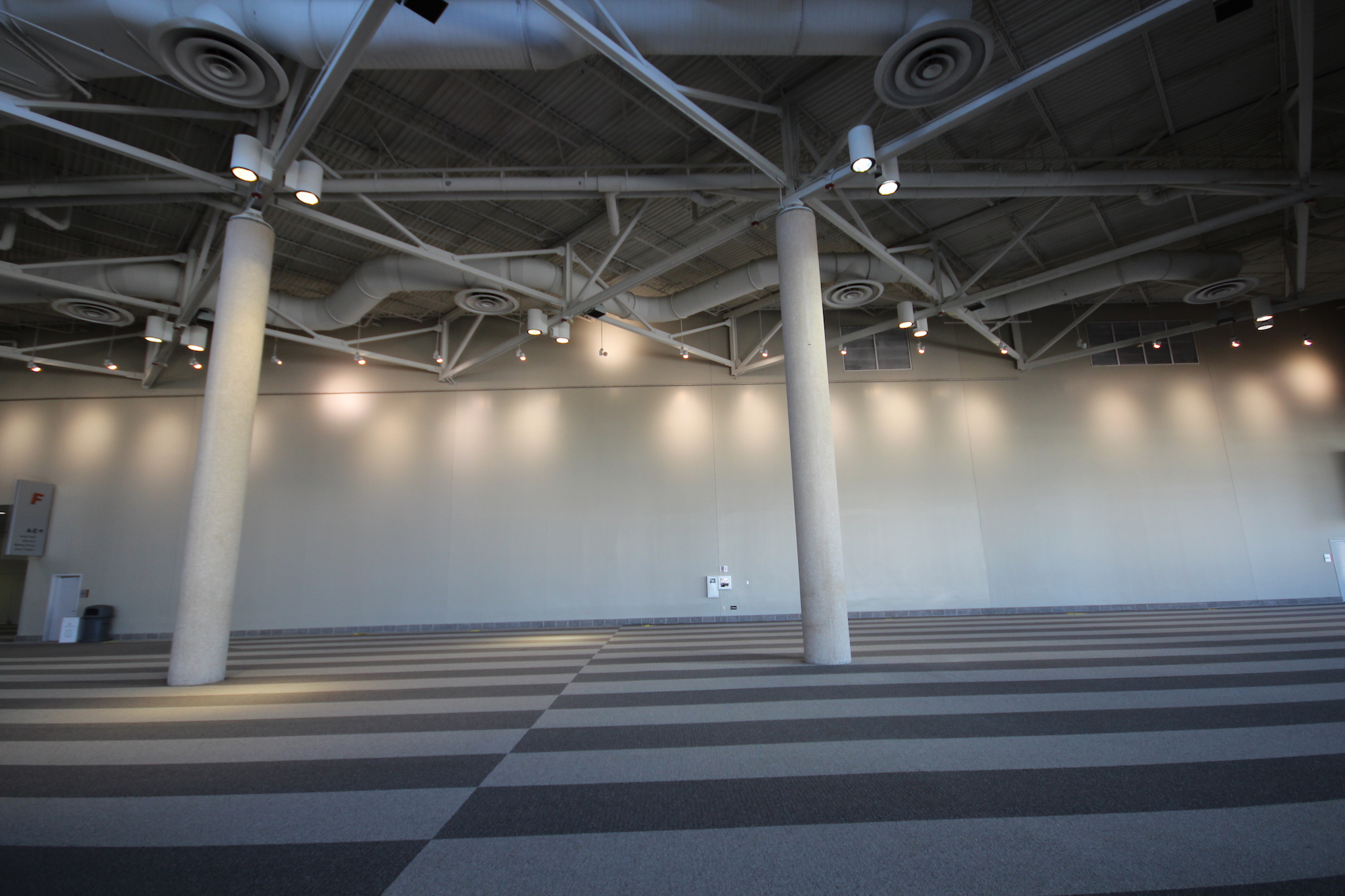

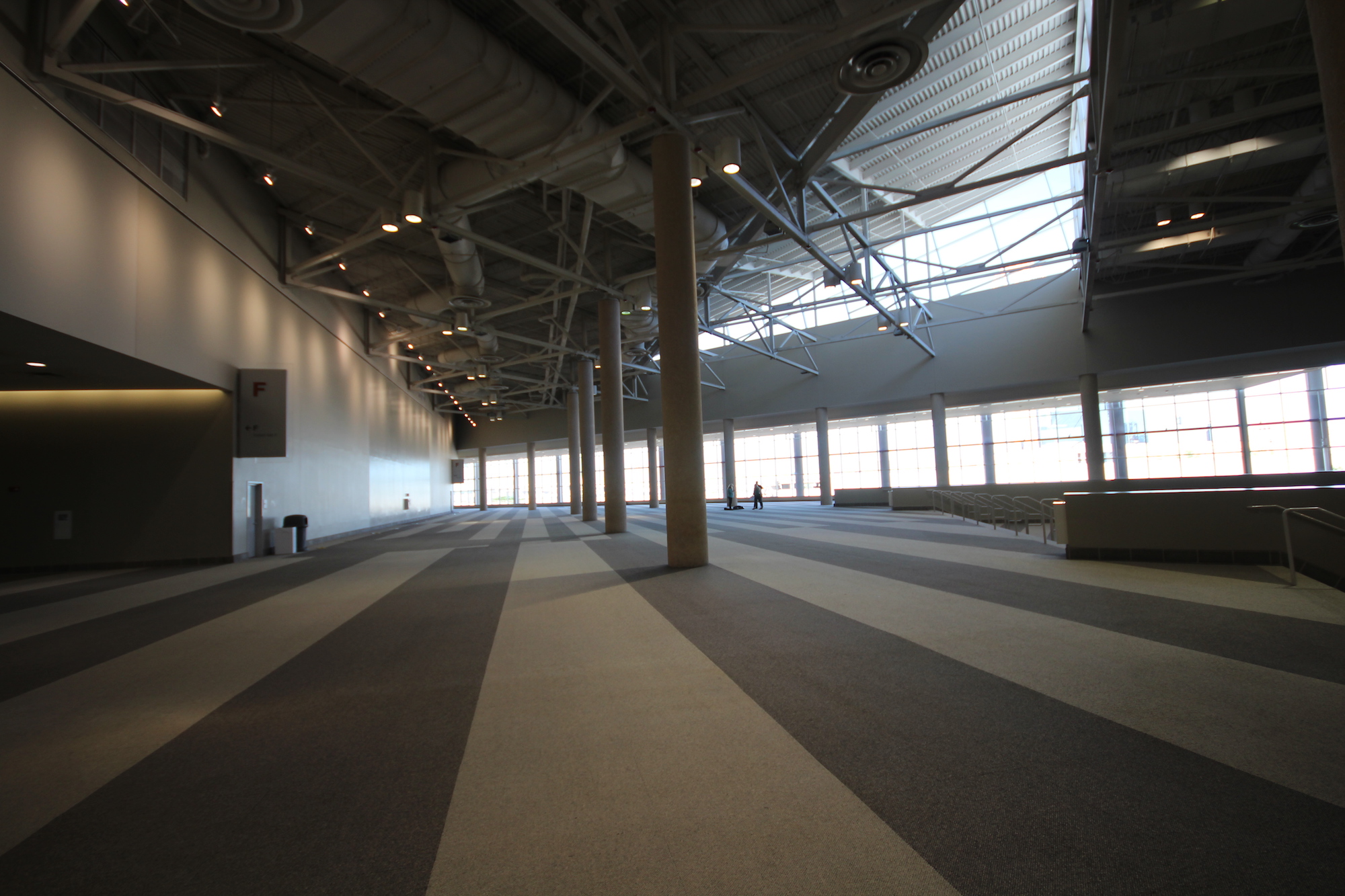

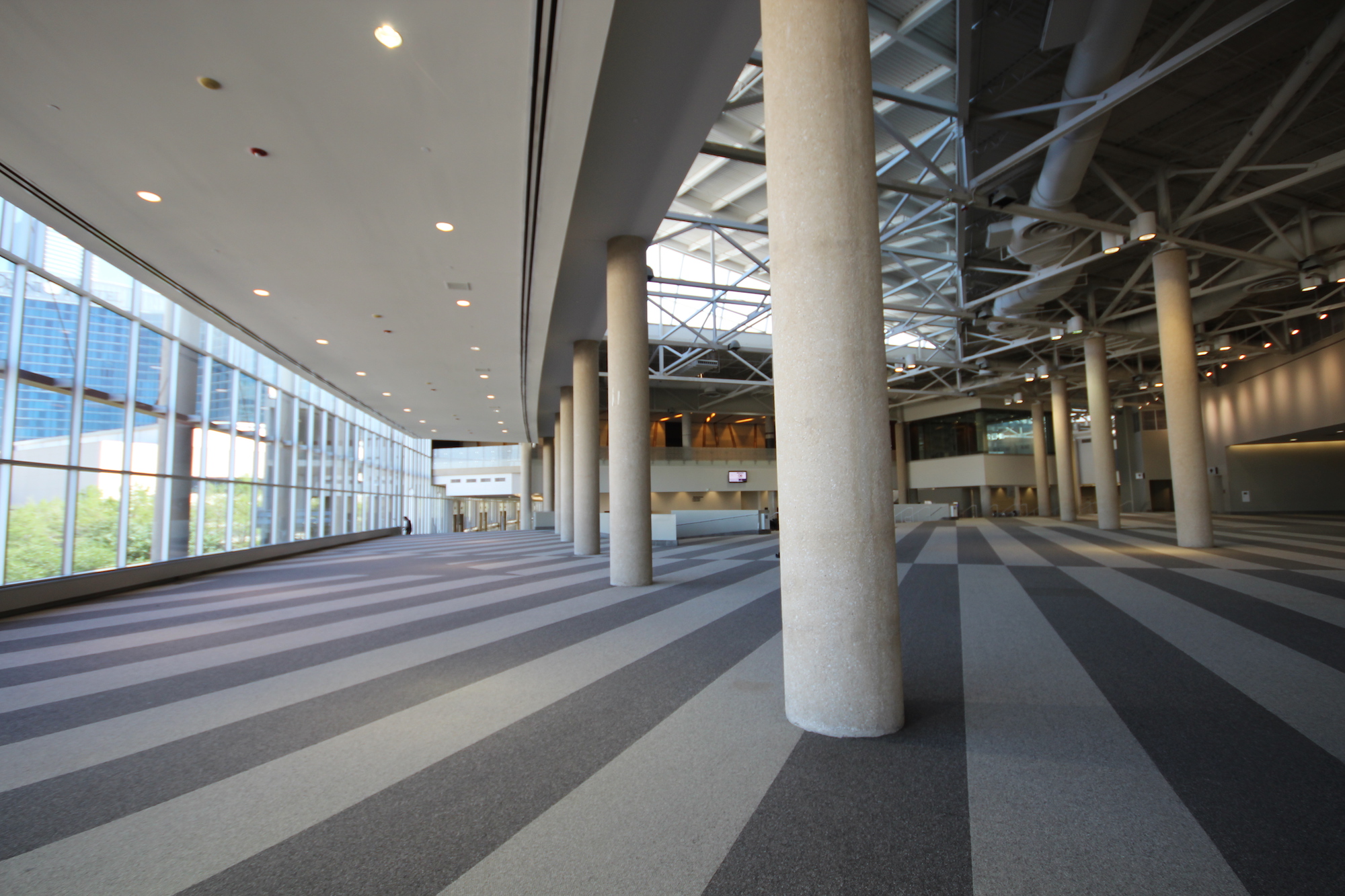

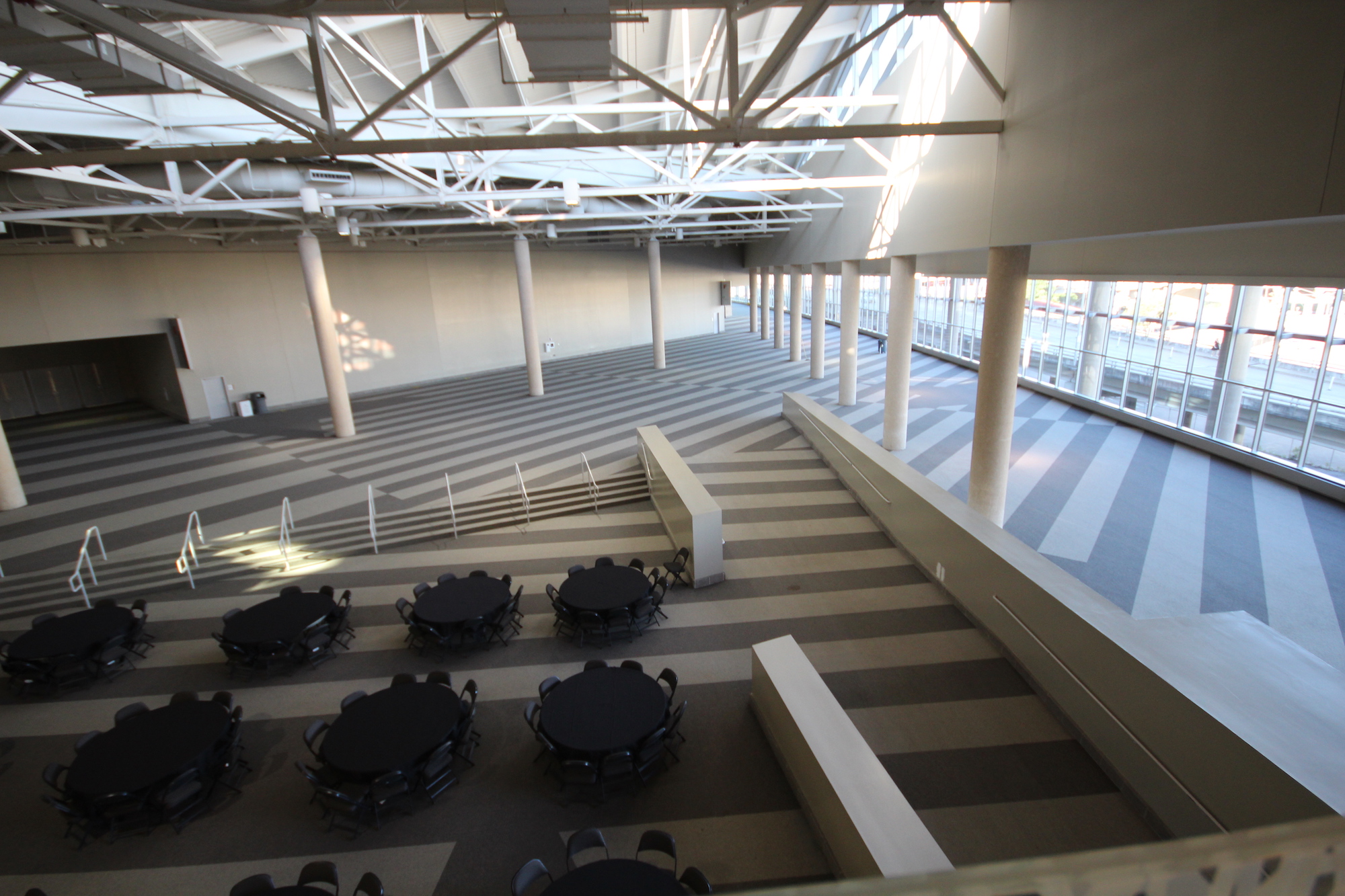

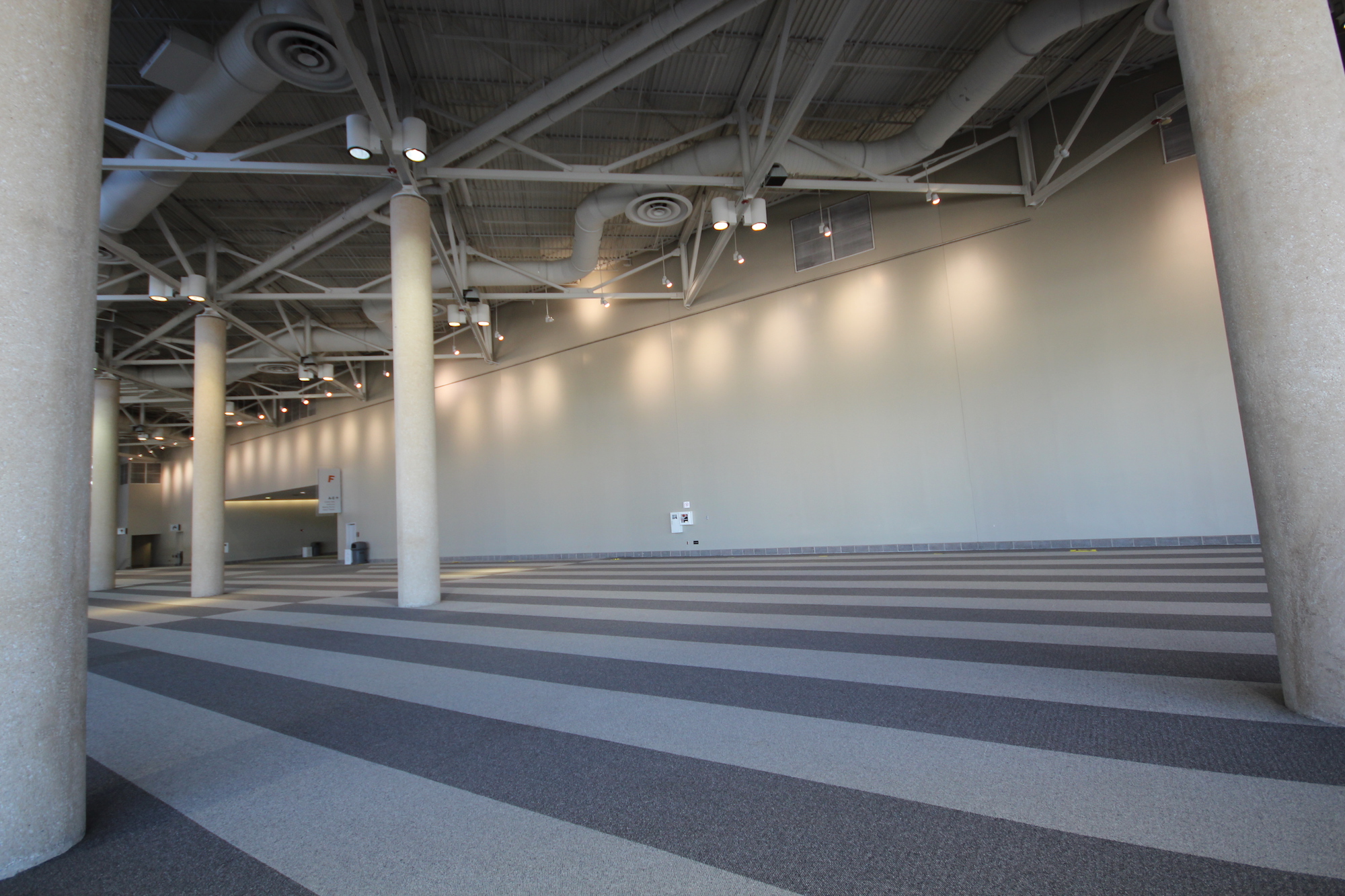

Gallery
Dimensions

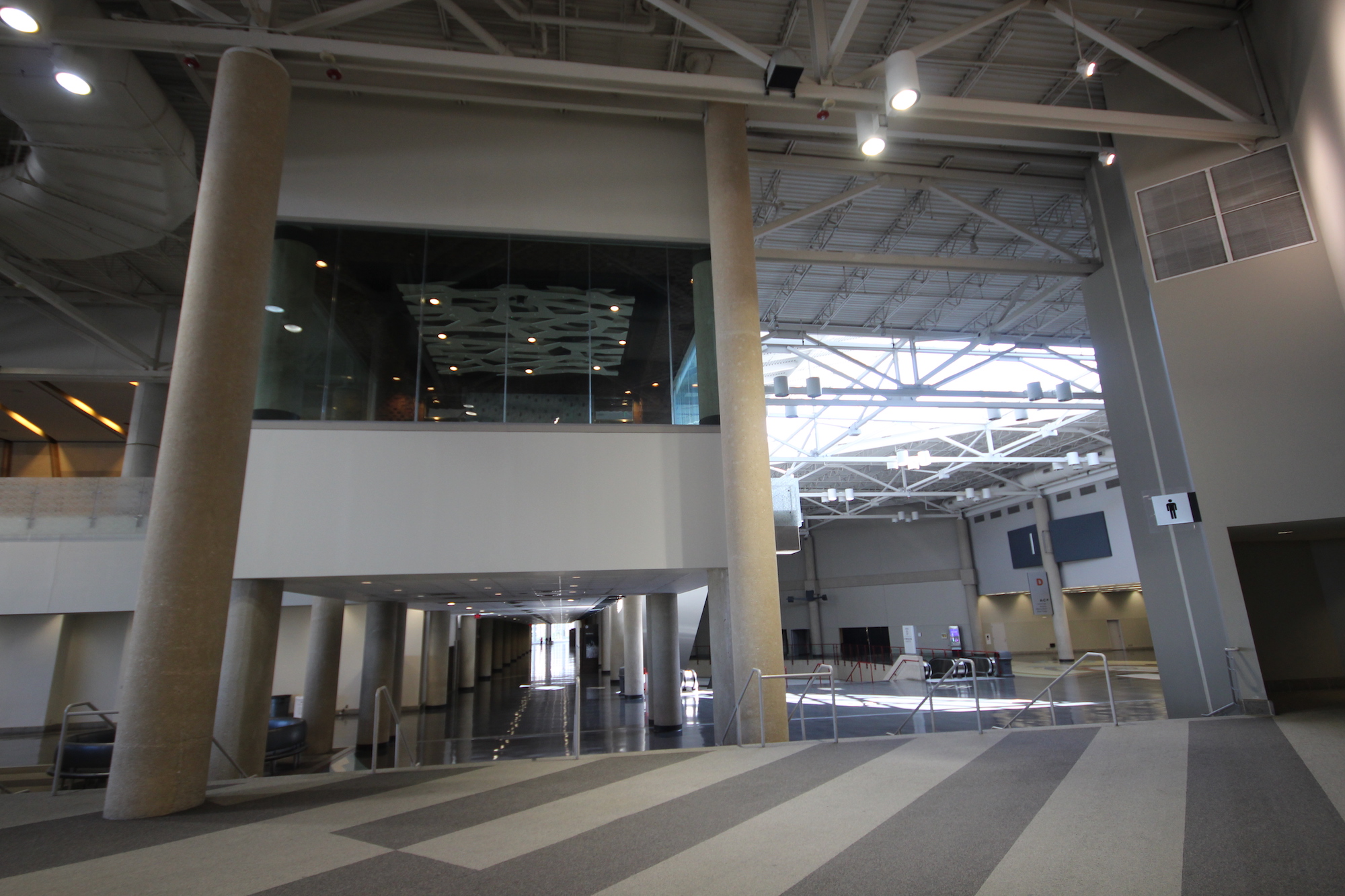

Hall F Entrance

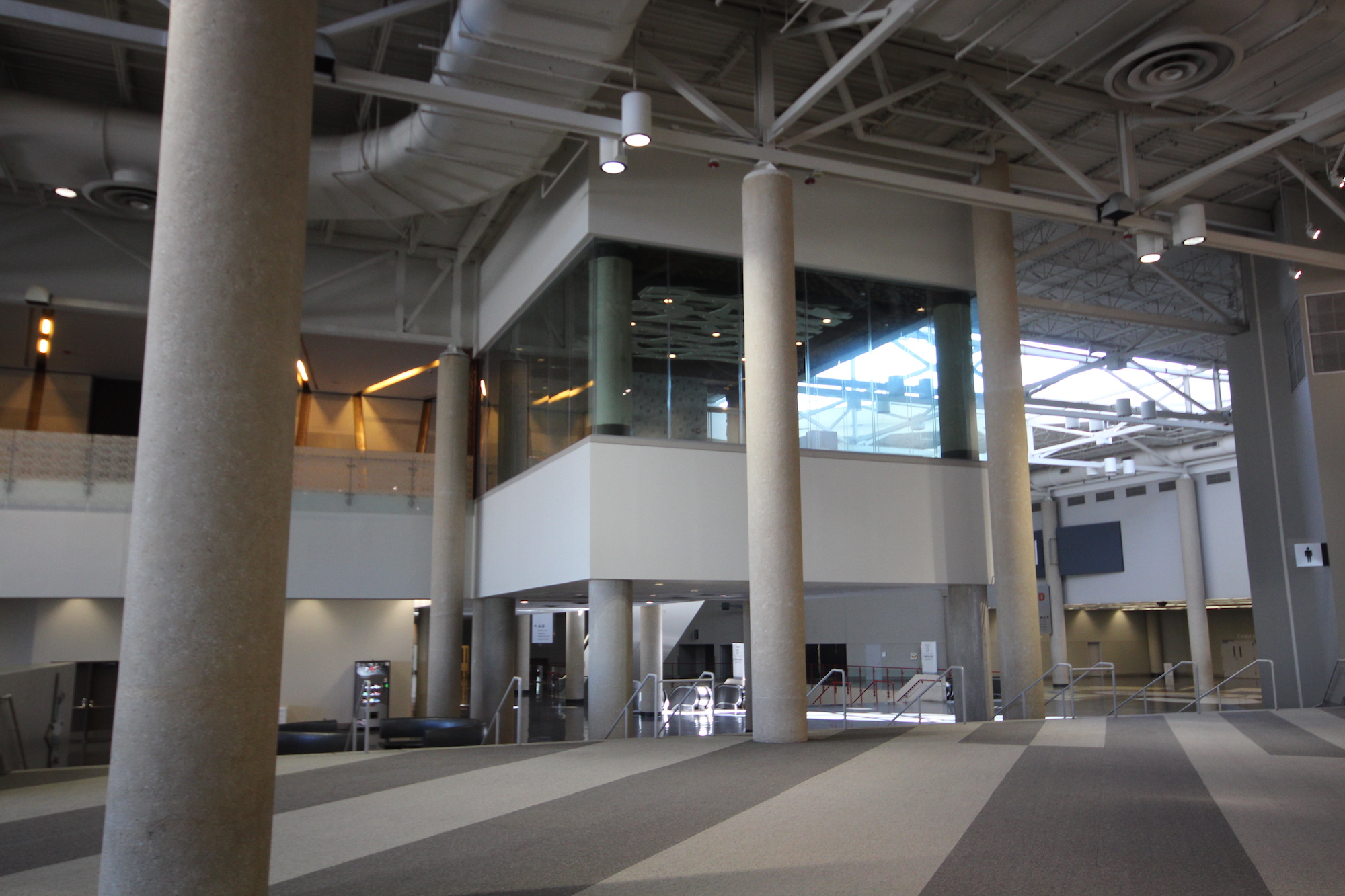

| # | Name | Dimensions |
|---|---|---|
| A | Column Circumferance | 96" |
| B | Height - Floor to Ceiling Truss | 28' 3-1/2" |
| C | Height - Floor to Rigging Bar | 27' |

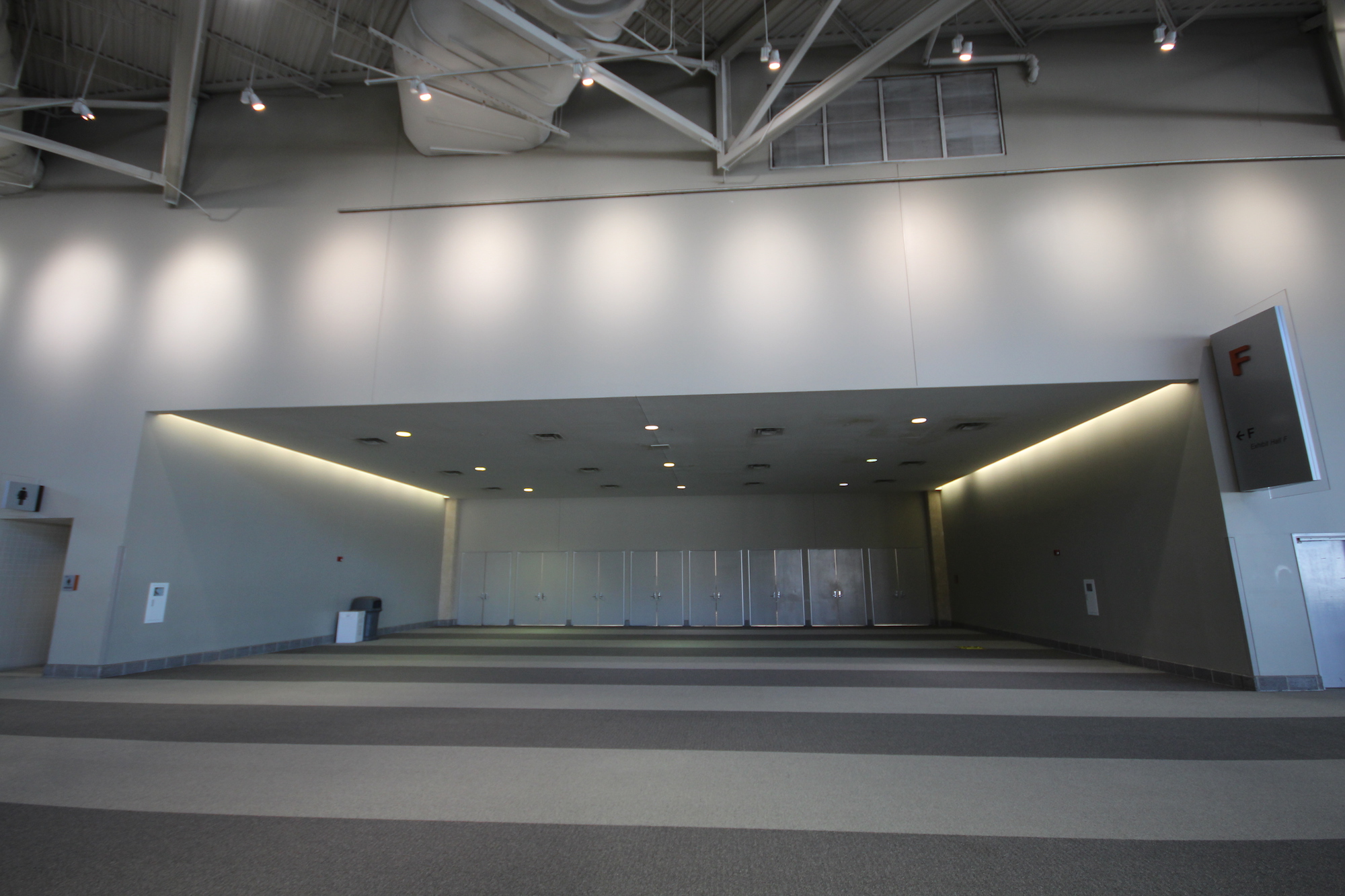

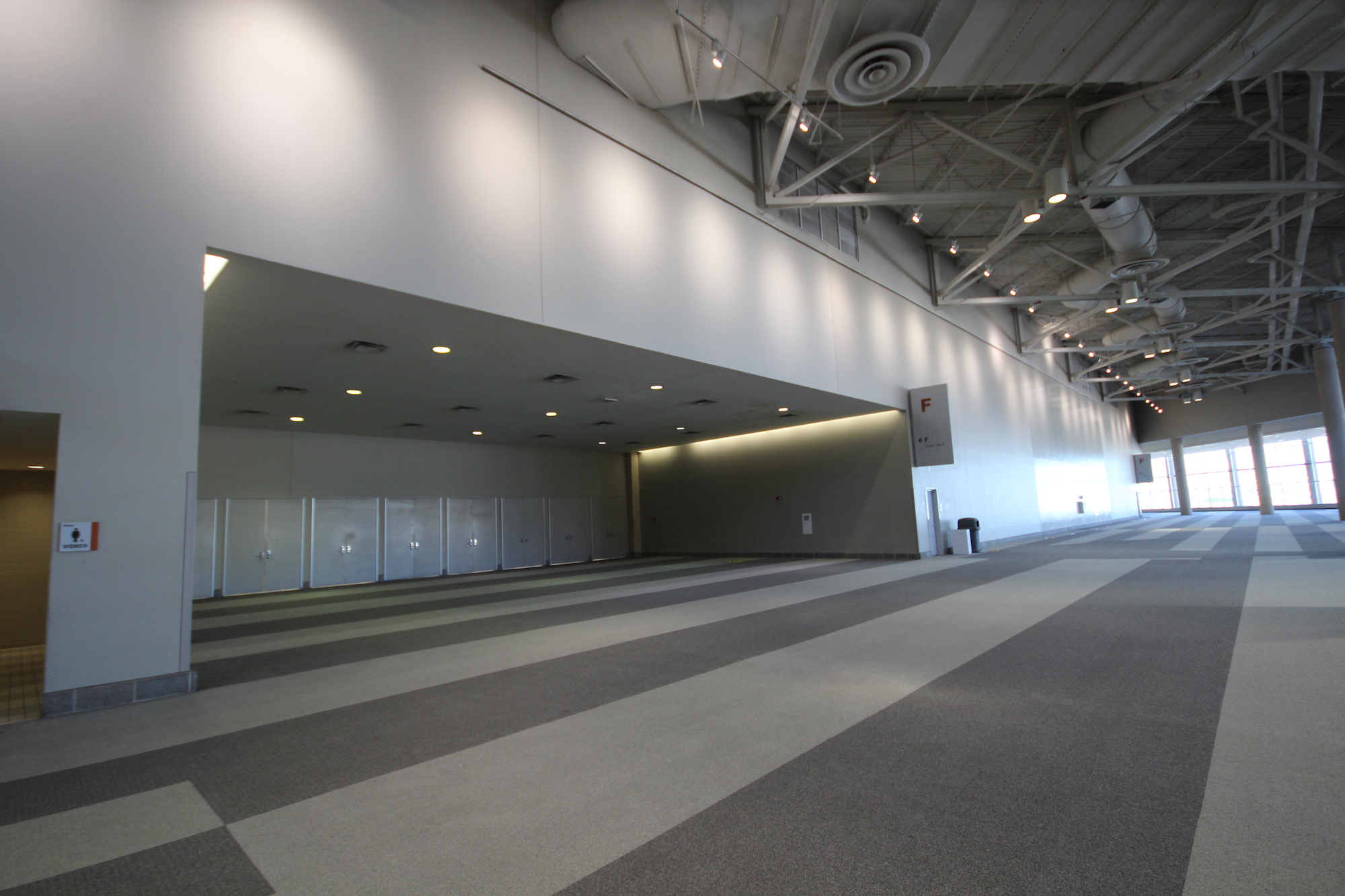

Hall F Entrance
| # | Name | Dimensions |
|---|---|---|
| A | Height - Entrance Ceiling to Rigging Bar | 12' |
| B | Height - Floor to Entrance Ceiling | 15' |
| C | Height - Above Entrance Door | 6' 2-3/4" |
| D | Width - Hall F Entrance | 55' 1/8" |

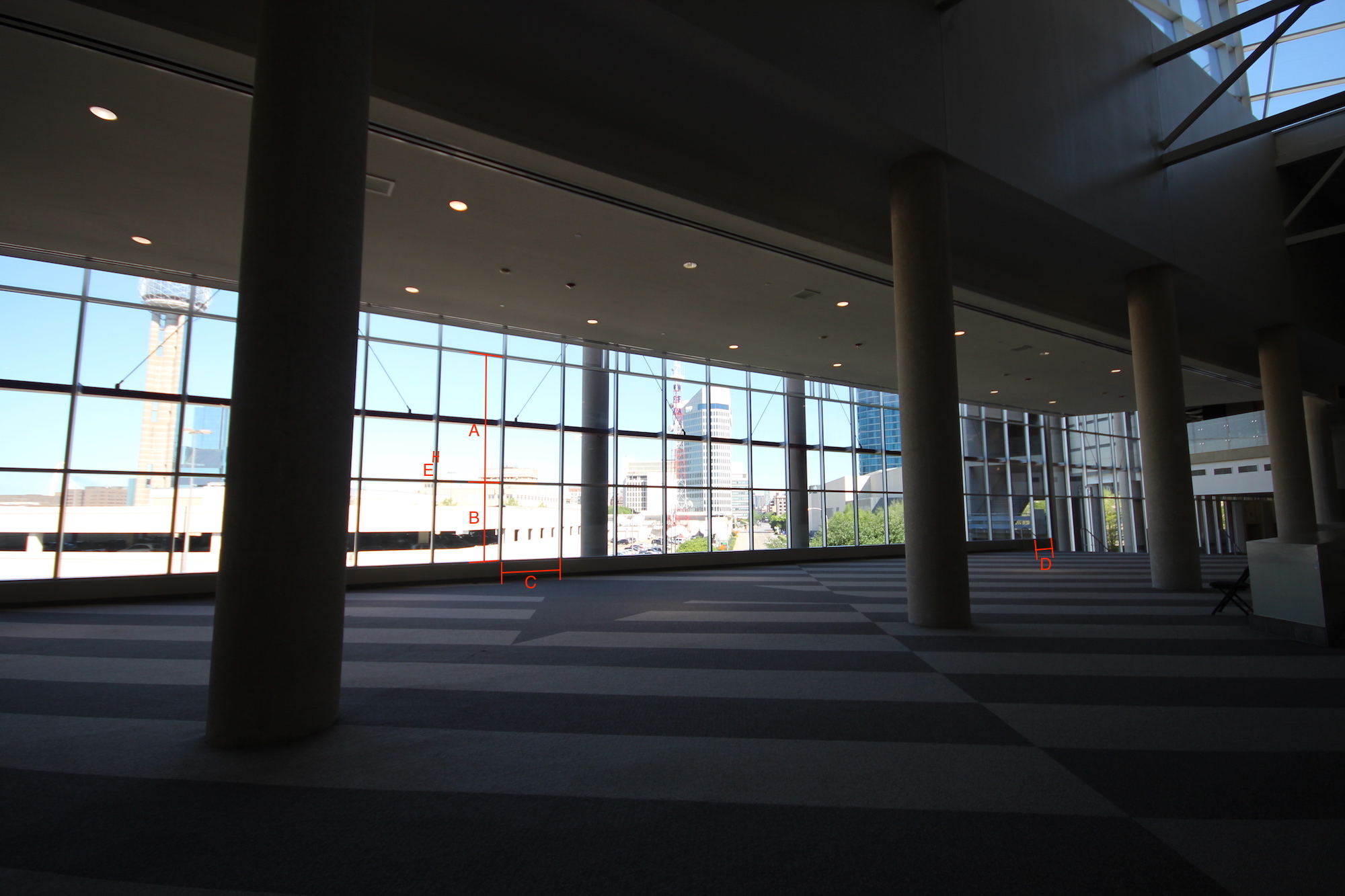

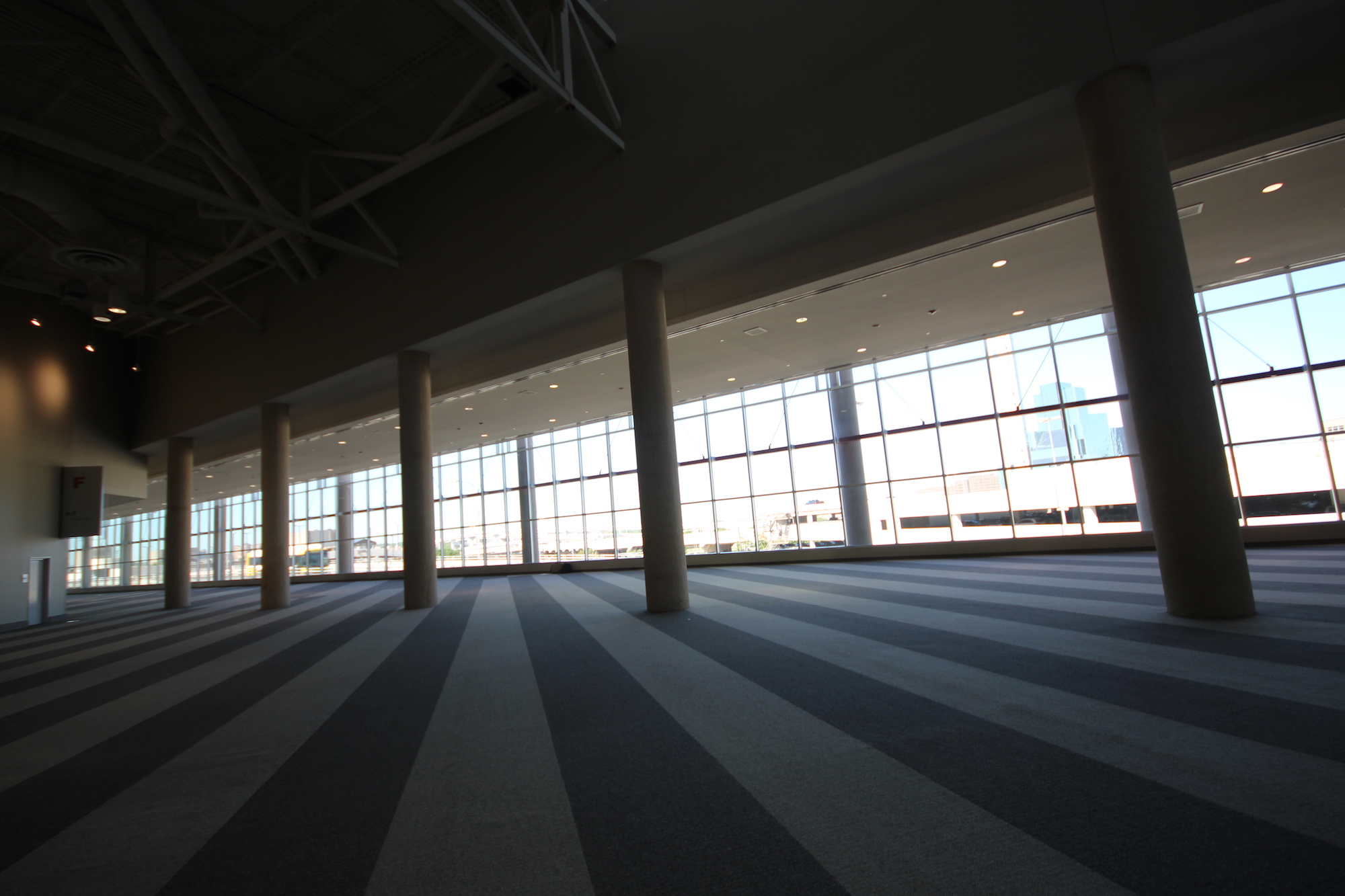

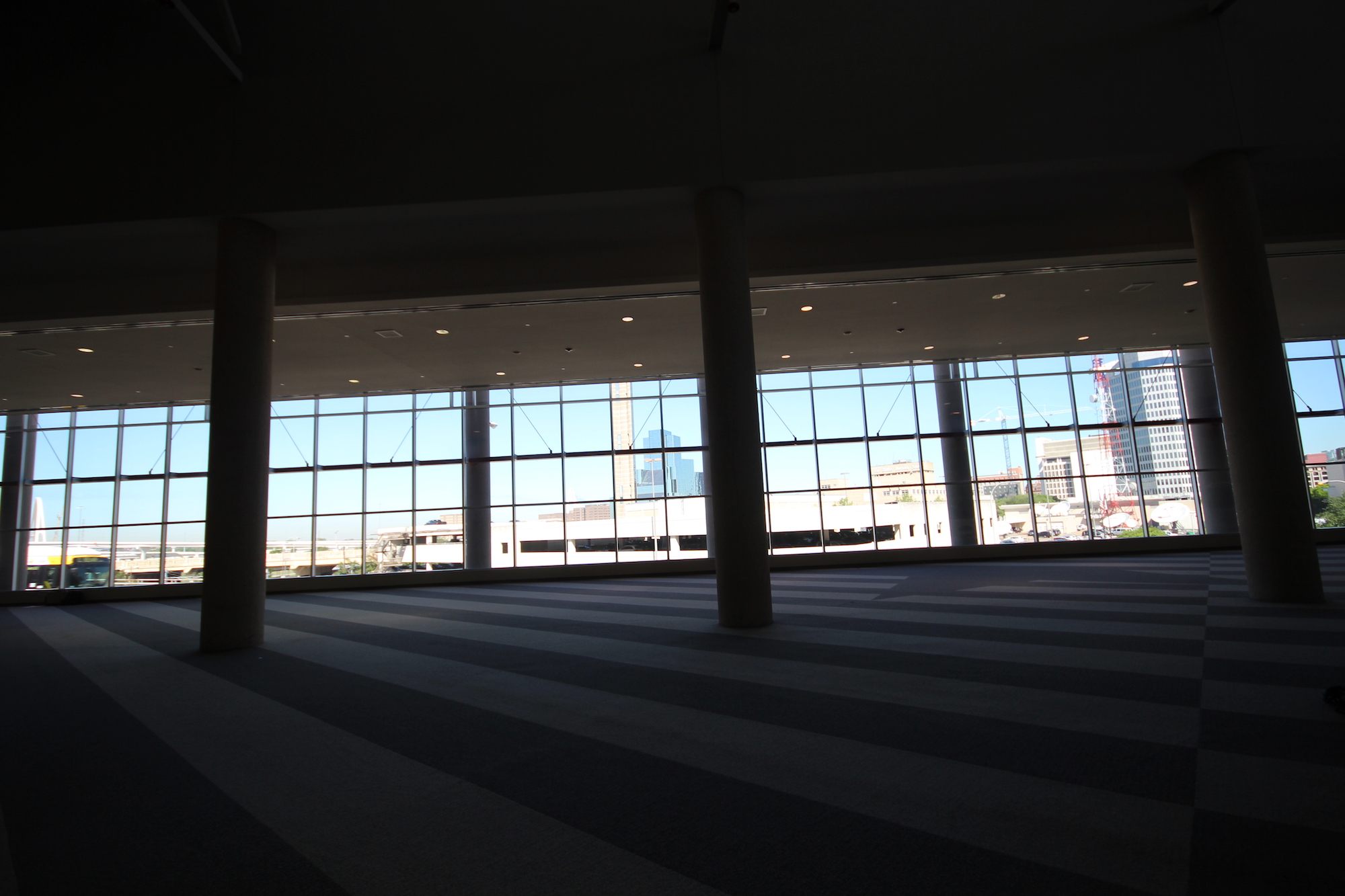

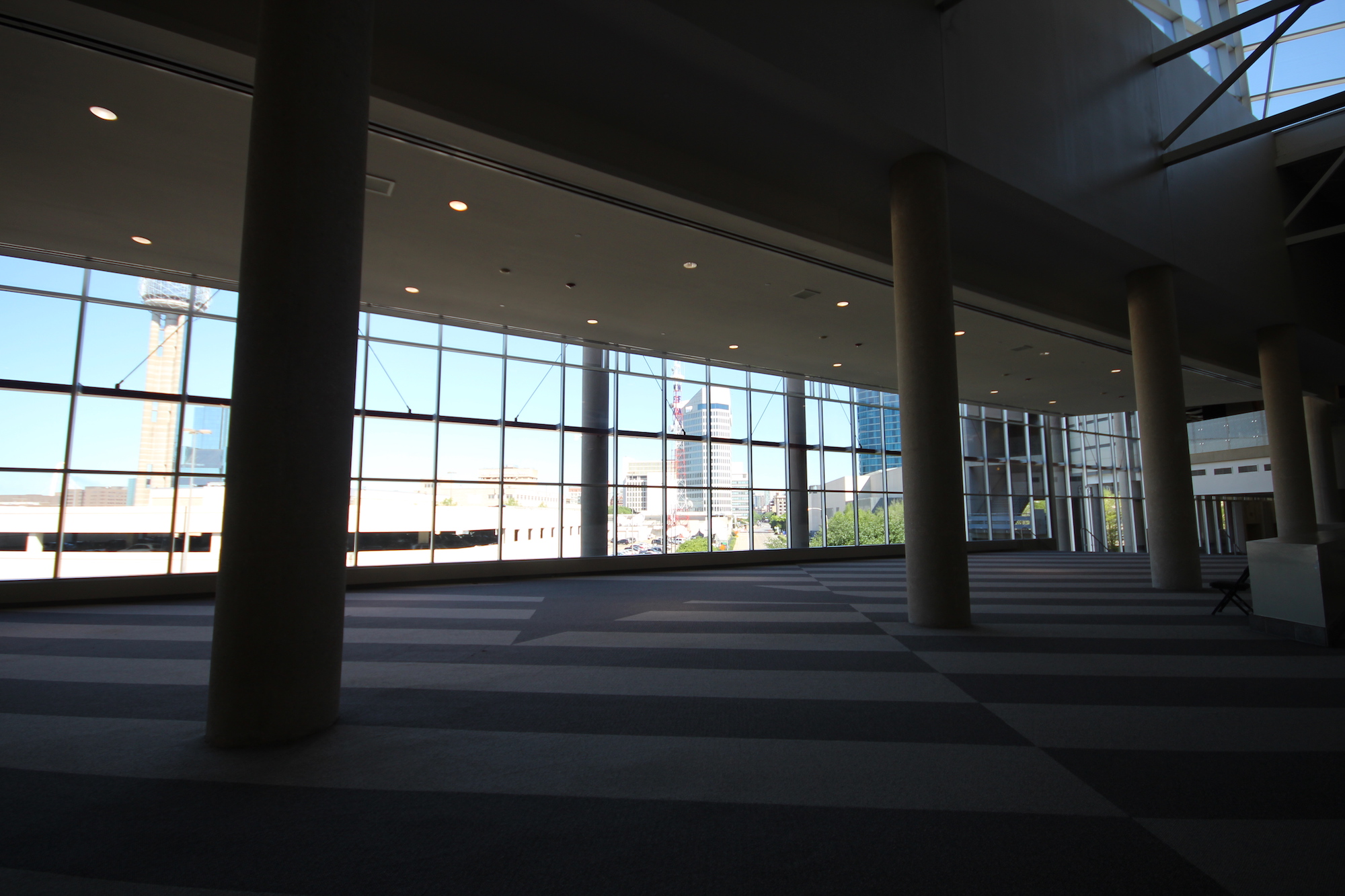

Windows along East wall
| # | Name | Dimensions |
|---|---|---|
| A | Height of upper windows | 9' 9-1/2" |
| B | Height of lower windows | 5' 9-1/2" |
| C | Width of windows | 57" |
| D | Width of windows near stairs | 44-3/4"" |
| E | Window Frame Thickness | 2-1/2" |
| Window Counts |
(101) 57" x 9' 9-1/2"
(101) 57" x 5' 9-1/2" (1) 44-3/4" x 9' 9-1/2" (1) 44-3/4" x 5' 9-1/2" |
