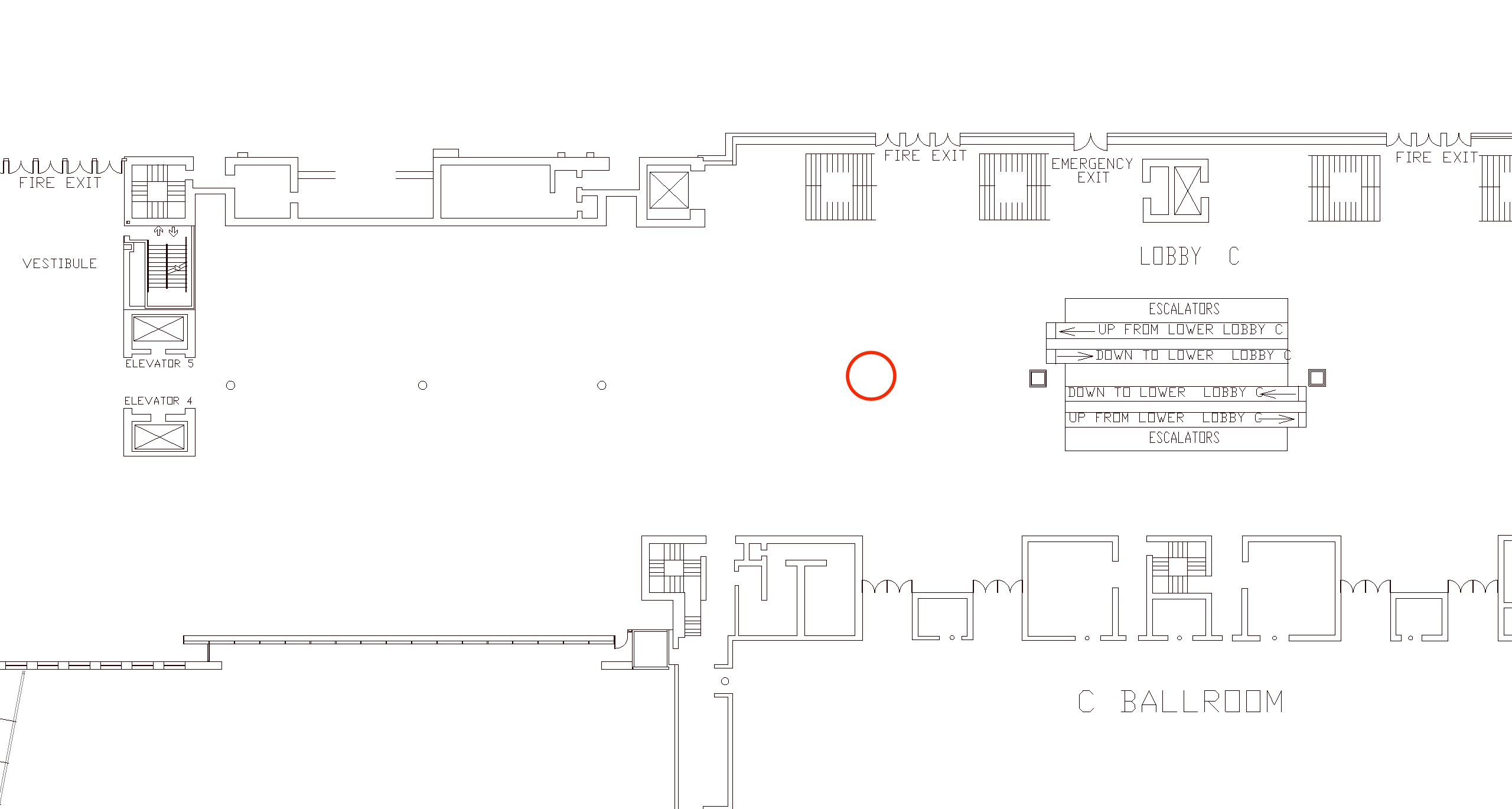

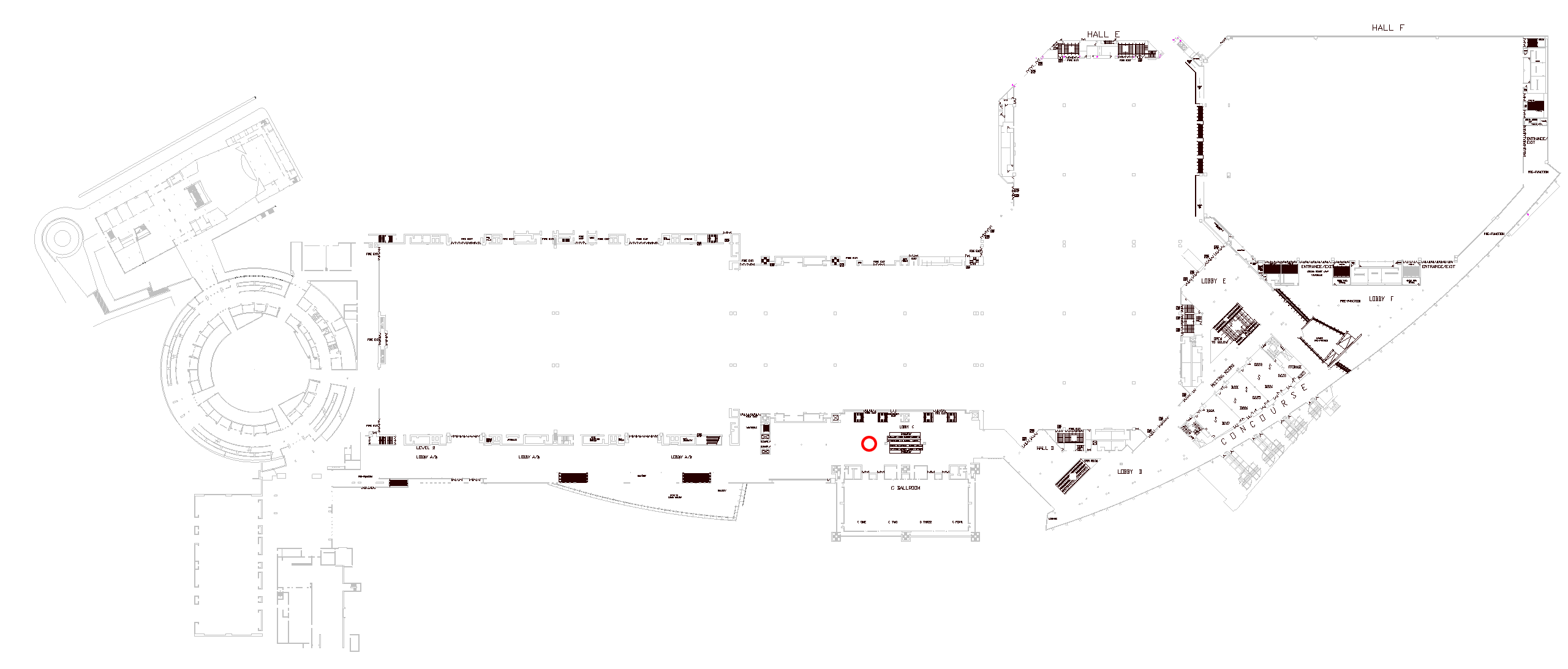

Hall C Lobby
Gallery
Dimensions

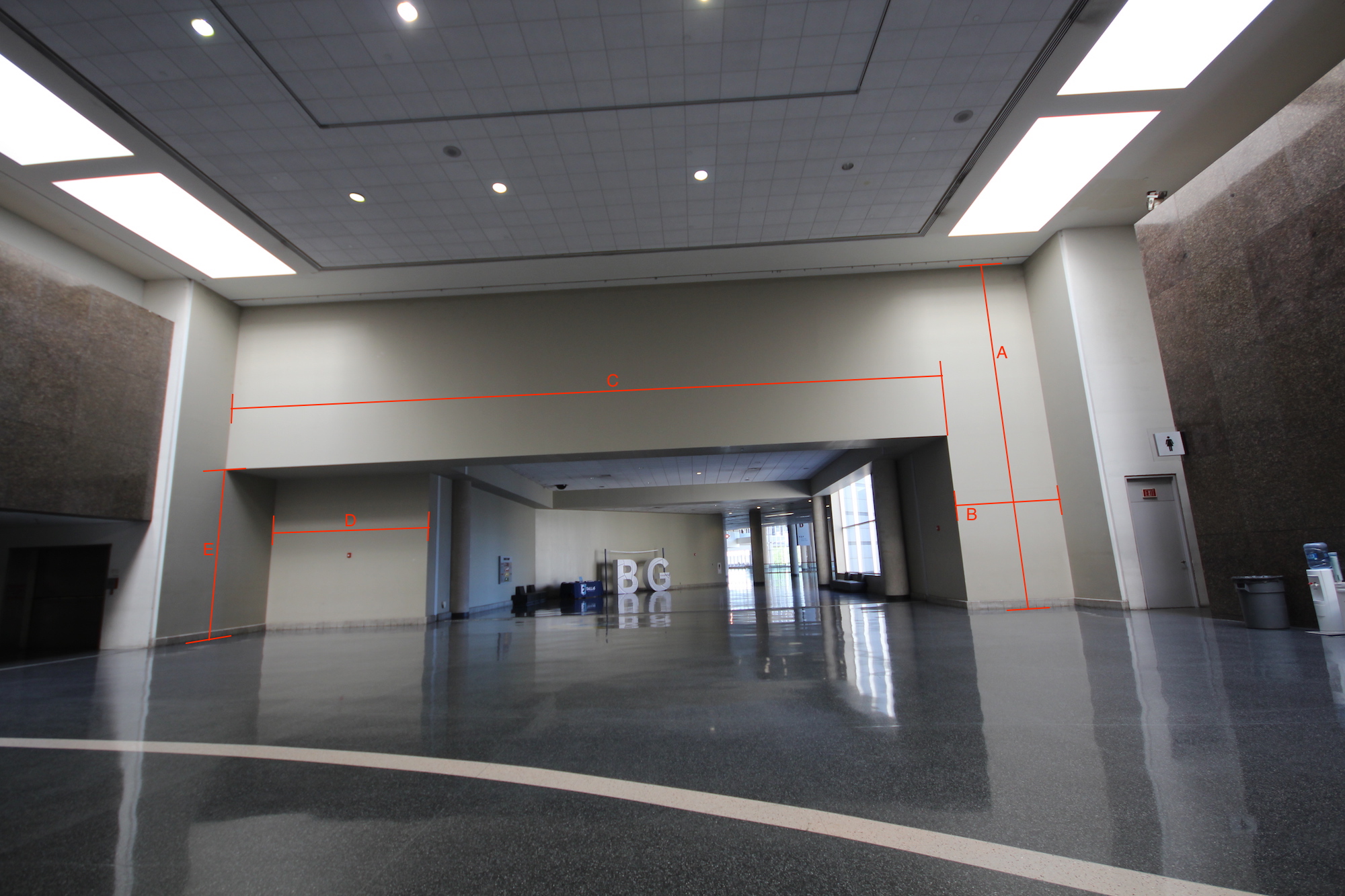

Walkway between Hall C Lobby and Hall D Lobby
| # | Name | Dimensions |
|---|---|---|
| A | Wall height from floor to ceiling | 31' 3/16" |
| B | Width of wall | 8' 10-1/2" |
| C | Width of large opening | 65' 7-5/16" |
| D | Width of recessed wall | 15' 11" |
| E | Height of walkway | 15' 9/16" |

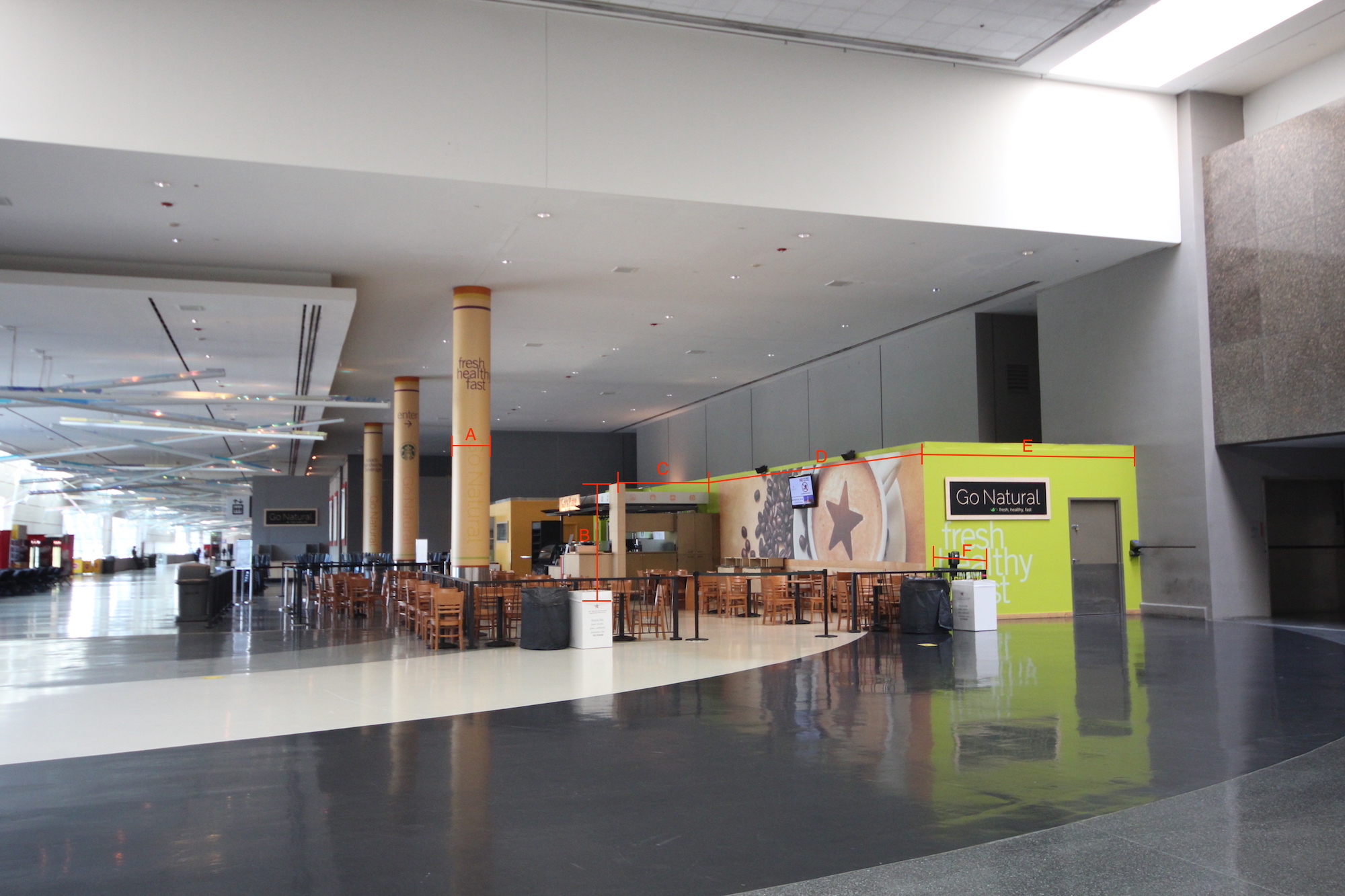

Front of food court
| # | Name | Dimensions |
|---|---|---|
| A | Column circumference | 7' 10" |
| B | Height of Temp. Wall to cover food court | 12' |
| C | Width of shop fronts | 82' |
| D | Width of recesssed wall | 33' 4" |

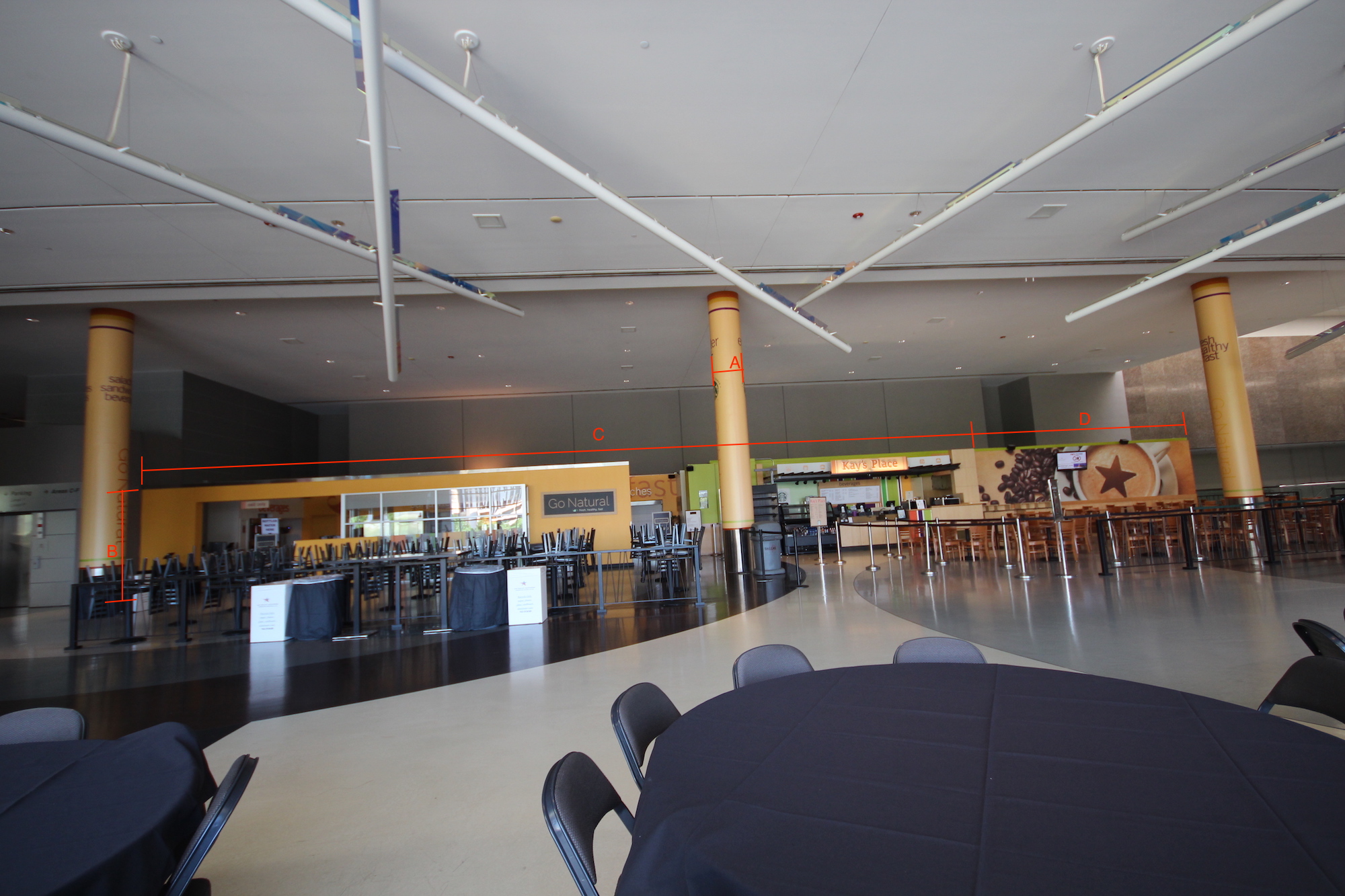

Food court
| # | Name | Dimensions |
|---|---|---|
| A | Column circumference | 7' 10" |
| B | Height of Temp. Wall to cover food court | 12' |
| C | Width of return wall | 12' 6" |
| D | Width of recesssed wall | 33' 4" |
| E | Width of end wall | 14' 10" |
| F | Length of railing from Wall E to end | 5' 3" |

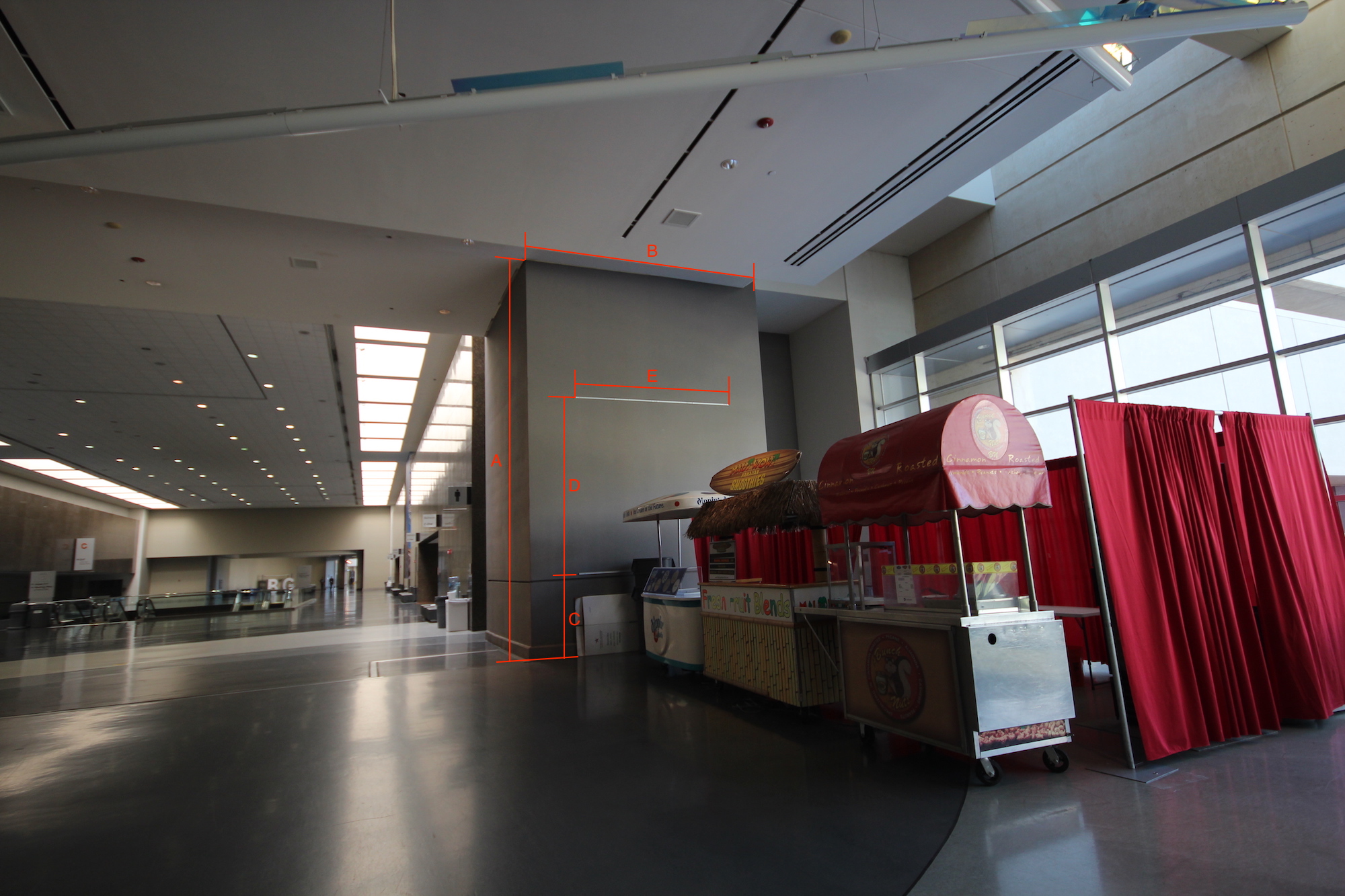

Wall on side of Ballroom C1-C4
| # | Name | Dimensions |
|---|---|---|
| A | Height of wall | 21' 11" |
| B | Width of wall | 14' 11" |
| C | Height from floor to bottom rail | 4' 2-1/2" |
| D | Height between rails | 9' 9" |
| E | Width of rails | 9' 10" |

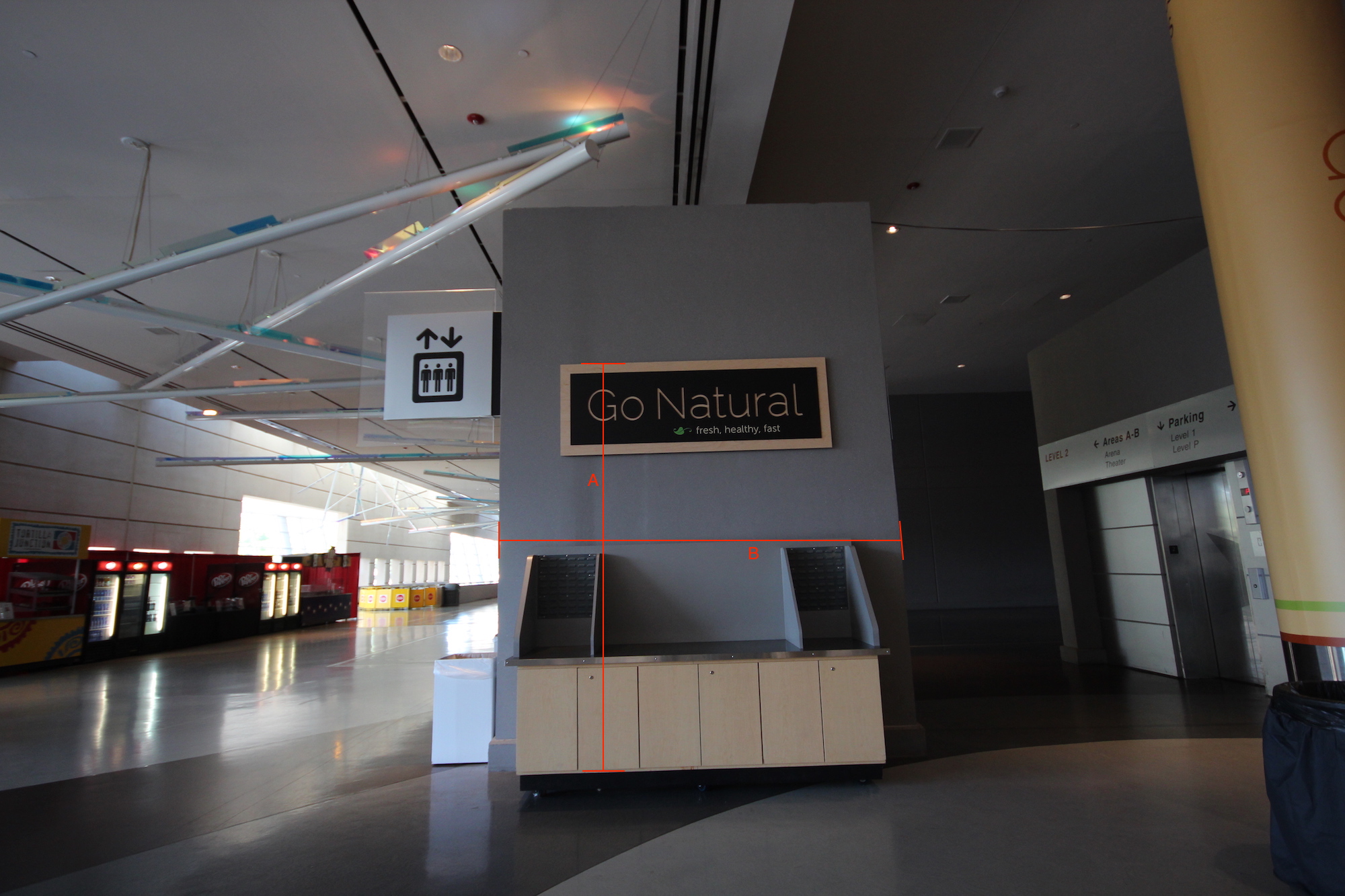

Wall by elevator/food court
| # | Name | Dimensions |
|---|---|---|
| A | Height from floor to top of sign | 10' 2" |
| B | Width of wall | 10' 6" |
